Example 3: Operator replication for an entire application

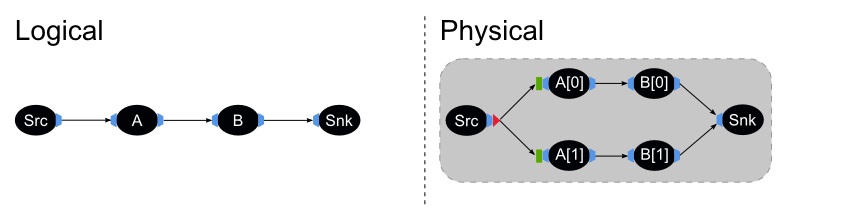

The parallel transformation replicates the operators A and B. The Src operator is given a splitter to feed the two parallel channels. Fusion places all operators in the same PE. Threaded ports are inserted between the splitter output ports and the replicas of operator A.

composite Comp3(input In; output B) {
  graph
    stream<Type> A = Functor(In) {}
    stream<Type> B = Functor(A) {}
}

composite Main3 {
  graph
    stream<Type> Src = Source() {
      config placement: partitionColocation(“SrcABSnk”);
    }
      @parallel(width=2)
    stream<Type> Out = Comp3(Src) {
      config placement: partitionColocation(“SrcABSnk”);
    }
    () as Snk = Sink(Out) {
      config placement: partitionColocation(“SrcABSnk”);
    }
}
