Example 5: Two splitters

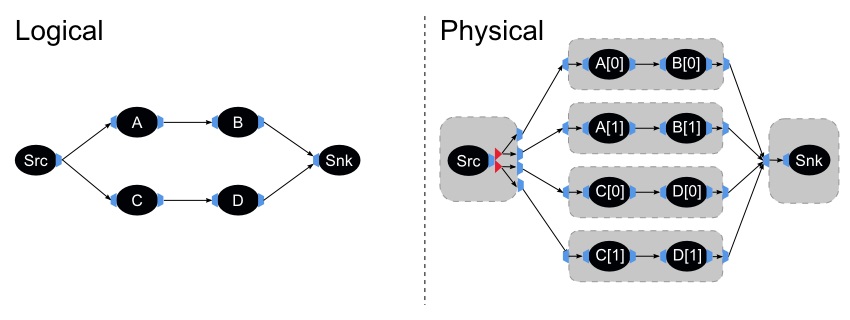

The parallel transformation replicates operators A and B for the first parallel region, and operators C and D for the second parallel region. The Src operator is given two splitters, one to feed each parallel region. Fusion places the sibling operators for operators A, B, C and D for each channel into a PE. Fusion places the Src and Snk operators into their own PEs.

composite Comp5_1(input In; output B) {
  graph
    stream<Type> A = Functor(In) {}
    stream<Type> B = Functor(A) {}
}

composite Comp5_2(input In; output D) {
  graph
    stream<Type> C = Functor(In) {}
    stream<Type> D = Functor(C) {}
}

composite Main5 {
  graph
    stream<Type> Src = Source() {
      config placement: partitionIsolation;
    }

    @parallel(width=2)
    stream<Type> Out_1 = Comp5_1(Src) {
      config placement: partitionColocation(byChannel());
    }

    @parallel(width=2)
    stream<Type> Out_2 = Comp5_2(Src) {
      config placement: partitionColocation(byChannel());
    }

    () as Snk = Sink(Out_1, Out_2) {
      config placement: partitionIsolation;
    }
}
