Examples

These examples demonstrate how to use the TSWindowing operator.

In this example, a Hann window function is applied to electrocardiography (ECG) time series data:


use com.teracloud.streams.timeseries.preprocessing::TSWindowing
composite Main {
  graph
    stream<float64 ECGValue> rawECGStream = FileSource() {
      param
        file : "test.dat";
        format : csv;
    }

    stream <list<float64> newTS> HannStream = TSWindowing(rawECGStream) {
      window rawECGStream: tumbling, count(10);
      param
        inputTimeSeries : rawECGStream.ECGValue;
        algorithm: Hann;
        flushOnFinal: true;
      output
        HannStream: newTS = windowedTimeSeries();
    }

    () as writer = FileSink(HannStream) {
      param
        file : "hannstream.csv";
    }
}

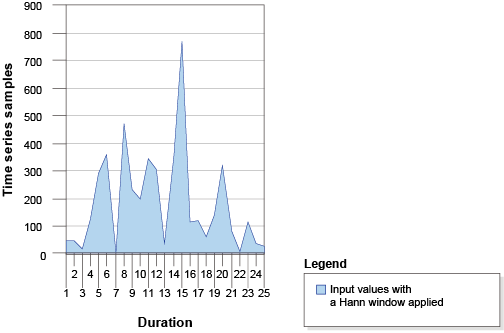

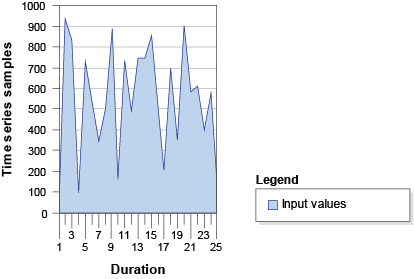

The following graphs show an example of time series data before and after you run the TSWindowing operator with the Hann algorithm:
